Considering the right precision cnc parts for a specific project entails the following steps. CNC component precision products also come in custom and standard forms, and this article will look at the two forms comprehensively. It will also explain how to assemble these parts concerning the particular needs of a given project in terms of material choices, fits, and surface finishes.
Also, the article will discuss strategies for improving precision cnc parts design for manufacturing and some of them are; part variation and reproducibility. Each of these aspects means that engineers and project managers can make better decisions for the successful implementation of the precision based project.
Types of Precision CNC Parts
CNC machining which provides very much precision in manufacturing has enhanced the manufacturing of small components from various types of materials. The choice of the right material is very vital in the process of the development of the final product and the use that it will be put to. This section explores the three main categories of precision CNC parts: metal components, plastic components, and composite materials.
Metal Components
Of all the precision cnc parts used in CNC machining, metals are the most popular because of their strength, heat, wear resistance, and hardness. Some popular metals used in precision CNC machining include:
- Aluminum and its alloys: Characterized by their good tensile strength to density ratio, resistance to corrosion, and outstanding appearance of silver color.
- Steel: It also, provides better strength to products and can cooperate with a range of heat treatment processes to improve the properties of the mechanism.
- Stainless Steel: Yields excellent electricity, and hardness and can withstand corrosion which makes it very suitable for the most strenuous programs.
- Titanium: It has high tensile electricity and coffee density, desirable resistance to corrosion and biocompatibility consequently can be utilized in aerospace and biomedical packages.
- Copper and its alloys (brass and bronze): Appreciated for functions together with awesome electrical and thermal conductivity, and corrosion resistance.
Plastic Components
Plastic materials have their features and characteristics and they are sometimes applied for replacing metals in some measurements. Common plastic precision cnc parts used in CNC machining include:
- ABS (Acrylonitrile Butadiene Styrene): It is useful in electrical home equipment as a housing fabric, in the automotive industry, and in toys due to its respectable impact strength and chemical resistance as well as low fee.
- Acrylic (PMMA): There are benefits inclusive of high stress, and optical readability, and may be used as a replacement for glass, offer.
- Delrin (POM): One that is highly stiff, has low frictional force per unit of load, and has a favorable expansion coefficient.
- Polycarbonate (PC): Offers proper resistance to effects, scratches, and warmth with superb transparency.
- PEEK (Polyether Ether Ketone): The call given to excessive-performance plastic which has accurate resistance in chemical and mechanical traits.
Composite Materials
Composite materials refer to a group of materials with one or more materials applied to give it other characteristics. Although less frequent in CNC machining they serve a particular purpose when used. Examples include:
- Carbon fiber strengthened plastics: Exhibit excessive electricity-to-weight ratios as well as stiffness.
- Glass-crammed nylon: Flame retardant which presents improved tensile strength and stiffness over fashionable nylon.
- Phenolics: Militaritical standard and offer good mechanical properties coupled with dimensional stability.
While selecting material for precision CNC parts several parameters need to be taken into consideration requirements of the application, the environment in which it is to be used, and the overall cost. This way, engineers and managers of projects can make sound decisions concerning the properties and capabilities of the various materials as far as their projects’ precision needs are concerned.

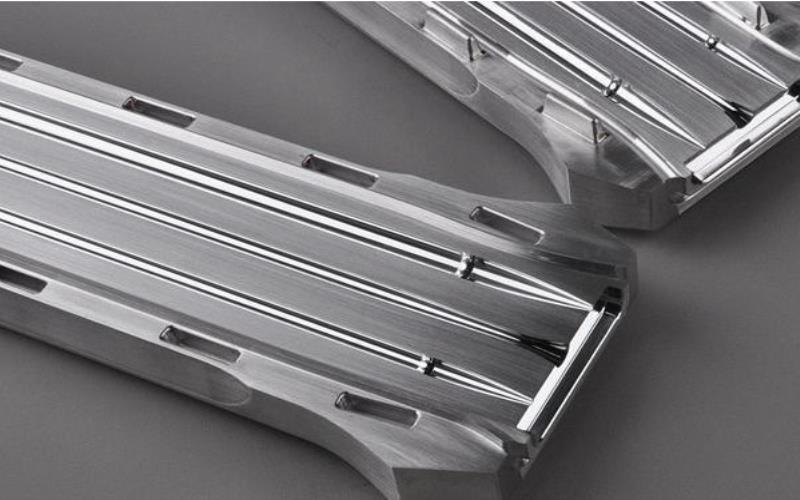

Optimizing CNC Part Design for Manufacturing
It is estimated that Design for Manufacturability (DFM) is critical for most CNC part design optimization. This process is usually geared towards the development of a better product at lower costs and this is achieved through Streamlined, redesigned, and integrated solutions. It wishes to introduce innovative ways of conceptualizing and executing the designs and manufacturing subprocesses that will be advantageous to the designers, manufacturers, and consumers.
To implement DFM effectively, engineers should consider the following principles:
- Material selection: Select materials easy to cut especially for large consignment of products. When choosing materials, take mechanical, optical, thermal, and electrical characteristics into consideration.
- Wall thickness: For metal parts construction of design walls is more than 0. 8mm and a minimum wall thickness of 1mm for the plastic parts. 5mm.
- Constant wall thickness: In the case of using the injection molding method in plastics, ensure that the walls are thin and of equal thickness to ensure rapid and even cooling.
- Feature design: The depth of cavities should not be more than 4 times the length, while radii should be added to the corners to minimize the overall cost of machining.
- Tolerances: Set the lowest possible tolerance limits required by function for tools while trying to minimize tooling costs and errors.
Reducing Complexity and Cost
To decrease the amount of manufacturing costs, designers need to work on the reduction of the complexity of the part geometry as well as the reduction of the number of subparts within the part assembly. Some strategies include:
- Utilizing non-parametric modules, or modular components where changes can be made to the product but do not necessarily affect the overall ability of the product to perform.
- Developing parts that fit into each other or can be snapped onto one another to reduce the use of joining hardware.
- Staying away from undercuts, could be nightmares in terms of fabrication and raise the tooling costs.
- Designing drafts that will make it easier to take the part out of molds.

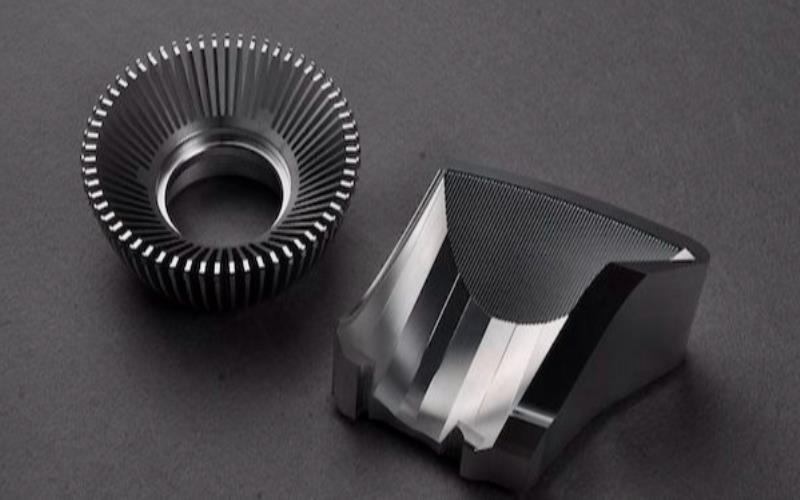

Prototyping and Iteration
CNC part design requires the use of prototyping to achieve the best possible design for the part. It facilitates the experimentation and assessment of the design without having to put into commerce the full-blown production of the object. To intensify the efforts in the procedural prototyping process, the following guidelines shall be observed:
- Use the touch probes to reduce the time that is spent on setting the machine and to increase accuracy.
- Increase usage of feature-based machining to decrease programming time.
- It is recommended that standard stock sizes should be utilized to cut on material consumption and time used in setting up.
Through these optimization strategies, engineers can design CNC parts that reduce manufacturing problems or complexity thus improving the cost and efficiency of the manufacturing process.
FAQs
What do Precision CNC Parts stand for?
Precision CNC parts are parts that are produced through Computer Numerical Control the process of manufacturing that is very precise and accurate.
What types of materials are available for Precision CNC Parts mostly?
Some of the commonly used materials are Aluminium, steel, stainless steel, Titanium, and plastics such as ABS, acrylic, Delrin, and carbon fiber reinforced plastics among others.
What material should I use for a CNC part?
The choice of material depends on the need to be met in such areas as strength, weight, corrosion, and cost. The environmental context in which the parts will be used is also relevant.
Conclusion
The choice of precision cnc parts affects the success of manufacturing projects in a very dramatic way. Certain materials, project types and constraints, and design measures are such that the engineer can construct parts that must meet important performance specifications at a reasonable cost. It also makes sure that the final product is not only accurate and credible but also affordable.
